MACHINE DESCRIPTION:

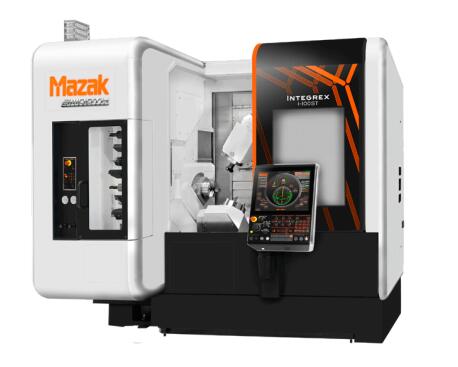

INTEGREX i-100S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for smaller complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and works to minimize fixtures, tools, handling and non-cut time.
Additionally, the machine brings dramatic reductions in lead-time, and improves part accuracy through the elimination of multiple setups. With full 5-axis capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed work), round parts, or highly contoured sculptured parts.
MACHINE CHARACTERISTICS:
· 'Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
· Optional 20k RPM (7.5 HP) milling spindle available
· Productive second turning spindle for Done-In-One part processing
· Full C-axis contouring (.0001 degree minimum index)
· Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
· 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
机床参数
|
Specification |
中心距 - |
|
加工能力 |
最大回转直径 |
530 mm / 20.87 in |
|
最大加工直径 |
500 mm / 19.690 in |
|
最大棒材加工能力 (受卡盘影响) |
51 mm / 2.0 in |
|
最大加工长度 |
854 mm / 33.620 in |
|
主轴 |
卡盘尺寸 |
6 in |
|
最大转速 |
6000 rpm |
|
电机功率 (30 分钟额定) |
11 kw / 15.0 hp |
|
第二主轴 |
卡盘尺寸 |
6 in |
|
最大转速 |
6000 rpm |
|
电机功率 (30 分钟额定) |
11 kw / 15.0 hp |
|
铣削主轴 |
B轴行程 |
240° |
|
刀库容量 |
36 |
|
最大转速 |
12000 rpm |
|
电机功率 (20 ED Rating) |
8 kw / 10 hp |
|
进给轴 |
行程(X轴) |
450 mm / 17.72 in |
|
行程(Y轴) |
210 mm / 8.27 in |
|
行程(Z轴) |
904 mm / 35.59 in |
|
行程(W轴) |
903 mm / 35.55 in |
|
