E DESCRIPTION:

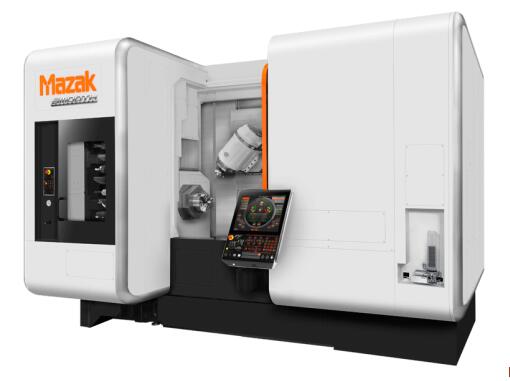

INTEGREX i-200S advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration features second turning spindle (S) for Done-In-One machining and works to eliminate multiple setups, fixtures, tools, handling and non-cut time. Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups.
With full 5-axis capability, the machine easily processes round parts with secondary operations, fully prismatic parts from solid or castings (chucked or bar fed work), or highly contoured sculptured parts.
MACHINE CHARACTERISTICS:
· Powerful main turning spindle
· Productive second turning spindle for Done-In-One part processing
· Milling spindle with Y-axis travel and B-axis rotation
· ATC changes both fixed turning and rotary tools
· 36-tool ATC standard - 72-tool capacity available
· Easy bar feeder or gantry loader integration for system automation
机床参数
|
Specification |
中心距 - 1000U mm |
中心距 - 1500U mm |
|
加工能力 |
最大回转直径 |
658 mm / 25.91 in |
658 mm / 25.91 in |
|
最大加工直径 |
658 mm / 25.910 in |
658 mm / 25.910 in |
|
最大棒材加工能力 (受卡盘影响) |
65 mm / 2.6 in |
65 mm / 2.6 in |
|
最大加工长度 |
1011 mm / 39.800 in |
1519 mm / 59.800 in |
|
主轴 |
卡盘尺寸 |
8 in |
8 in |
|
最大转速 |
5000 rpm |
5000 rpm |
|
电机功率 (30 分钟额定) |
22 kw / 30.0 hp |
22 kw / 30.0 hp |
|
第二主轴 |
卡盘尺寸 |
8 in |
8 in |
|
最大转速 |
5000 rpm |
5000 rpm |
|
电机功率 (30 分钟额定) |
19 kw / 25.0 hp |
19 kw / 25.0 hp |
|
铣削主轴 |
B轴行程 |
240° |
240° |
|
刀库容量 |
36 |
36 |
|
最大转速 |
12000 rpm |
12000 rpm |
|
电机功率 (40 ED Rating) |
22 kw / 30 hp |
22 kw / 30 hp |
|
进给轴 |
行程(X轴) |
615 mm / 24.21 in |
615 mm / 24.21 in |
|
行程(Y轴) |
260 mm / 10.24 in |
260 mm / 10.24 in |
|
行程(Z轴) |
1077 mm / 42.40 in |
1585 mm / 62.40 in |
|
行程(W轴) |
1066 mm / 41.97 in |
1066 mm / 41.97 in |
|
