MACHINE DESCRIPTION:

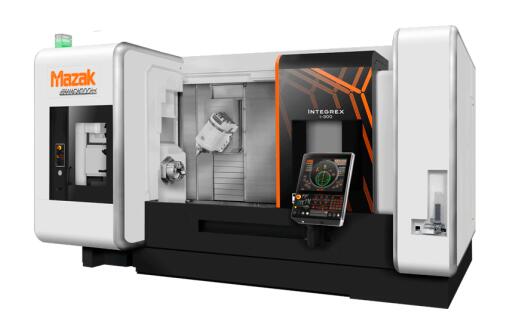

INTEGREX i-300 advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for medium to large complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. This machine configuration works to minimize fixtures, tools, handling and non-cut time.
Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis machining capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed), round parts, or highly contoured parts.
MACHINE CHARACTERISTICS:
· Milling spindle travel -30 ~ 210 degrees (.0001 degree min index angle)
· Optional 20k RPM (15 HP) milling spindle available
· Full C-axis contouring (.0001 degree minimum index)
· Programmable NC Tailstock
· Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
· 36-tool ATC standard ( HSK A63 ) – 72 or 110 tool options available
· Multiple bed lengths available – 40”, 60”
机床参数
|
Specification |
中心距 - 1000U mm |
中心距 - 1500U mm |
中心距 - 2500U mm |
|
加工能力 |
最大回转直径 |
658 mm / 25.91 in |
658 mm / 25.91 in |
658 mm / 25.91 in |
|
最大加工直径 |
658 mm / 25.910 in |
658 mm / 25.910 in |
658 mm / 25.910 in |
|
最大棒材加工能力 (受卡盘影响) |
80 mm / 3.2 in |
80 mm / 3.2 in |
80 mm / 3.2 in |
|
最大加工长度 |
1011 mm / 39.800 in |
1519 mm / 59.800 in |
2497 mm / 98.310 in |
|
主轴 |
卡盘尺寸 |
10 in |
10 in |
10 in |
|
最大转速 |
4000 rpm |
4000 rpm |
4000 rpm |
|
电机功率 (30 分钟额定) |
30 kw / 40.0 hp |
30 kw / 40.0 hp |
30 kw / 40.0 hp |
|
铣削主轴 |
B轴行程 |
240° |
240° |
240° |
|
刀库容量 |
36 |
36 |
36 |
|
最大转速 |
12000 rpm |
12000 rpm |
12000 rpm |
|
电机功率 (40 ED Rating) |
22 kw / 30 hp |
22 kw / 30 hp |
22 kw / 30 hp |
|
进给轴 |
行程(X轴) |
615 mm / 24.21 in |
615 mm / 24.21 in |
615 mm / 24.21 in |
|
行程(Y轴) |
260 mm / 10.24 in |
260 mm / 10.24 in |
260 mm / 10.24 in |
|
行程(Z轴) |
1077 mm / 42.40 in |
1585 mm / 62.40 in |
2563 mm / 100.91 in |
|
